Advanced interface for ease of use
Utilising RDM with DMX configurations, it is possible to edit data:
– via computer connected directly to the controller
– through the interconnected local (LAN) or wide area network (Internet)
– directly with Cloud service access
Complete remote control & real time monitoring
The Cloud enables real time monitoring of the luminaires and provides direct feedback when a problem is detected. For example damage to individual fittings and components.
Increased flexibility during installation
With RDM system, the distance between the controller and luminaire can increase from 150 m to 300 m
TPC – Touch Panel Controller
The TPC (Touch Panel Controller) is an elegant touch screen lighting controller with a customisable, 4.3″ capacitive touch panel, 512 channels of eDMX output and vast interfacing potential, all over a single. Power-over-Ethernet (PoE) network connection.
EXT – TPC Extension
The EXT is an extension for the Pharos TPC and together they form a standalone, mains-powered lighting controller with versatile output and show control options.
The EXT provides local DMX and DALI output for the TPC, as well as power and other hardware interfaces.
LPC – Lighting Playback Controller
The LPC (Lighting Playback Controller) is an all-in-one control solution for themed entertainment and LED lighting installations. It features individually controllable and independently running timelines and scenes. Supported fixtures include LEDs in any configuration (RGB, RGBW, tuneable white), moving heads, yokes or scanners and fountain jets. Output includes DMX512, Art-Net, DALI & RDM.
PoE – Power-over-Ethernet Switch
The POE provides a simple power and networking solution for four Power-over-Ethernet devices with two separate Ethernet uplink ports. It is perfect for connecting power and data between Pharos Controllers and Pharos Remote Devices.
RDM – DMX Repeater
The RDM (Remote Device Management) is a 4 port DMX512 Splitter compatible with the RDM standard to provide DMX output to luminaires and other devices. DMX splitters are an essential requirement for most control systems, allowing multiple separate cable runs from a single DMX output and ensuring electrical isolation.
TPS – Touch Panel Station
The TPS (Touch Panel Station) is an elegant interface with a customisable, 4.3” capacitive touch screen, that works with any Pharos Controller.
Pharos – CLOUD
The CLOUD makes it easy to achieve remote control and management which is truly remote and totally secure. Once connected, users can adjust hardware settings remotely, schedule tasks, control multiple projects, view system status, set remote user permissions, and more; through a standard internet connection without any additional hardware.

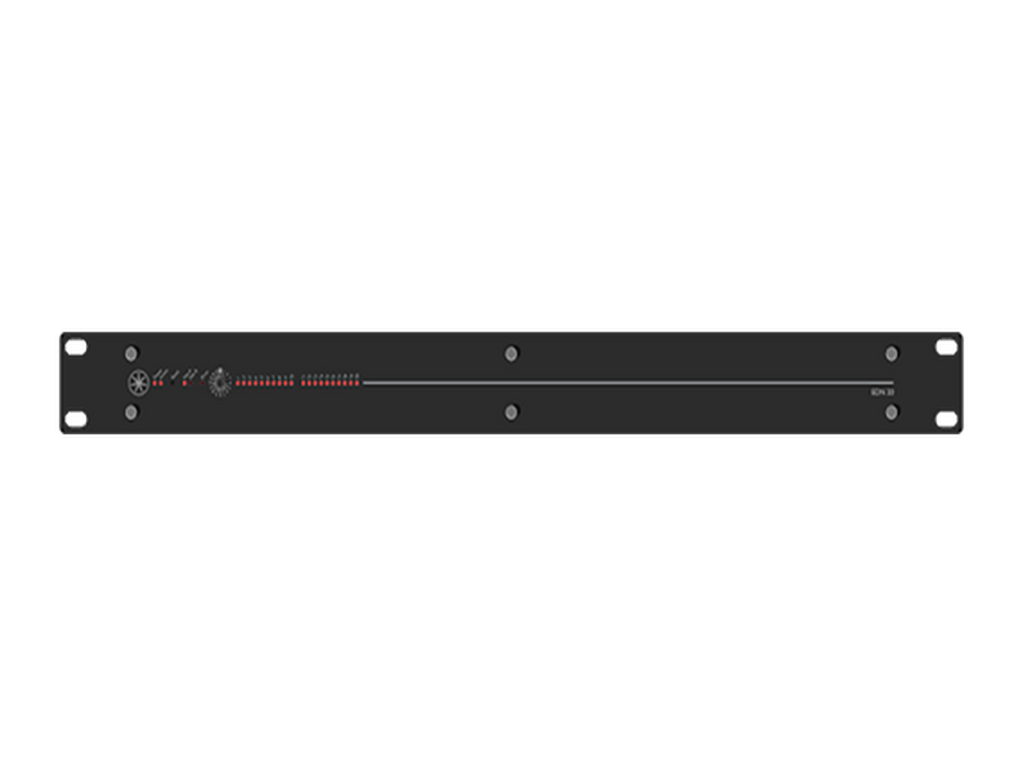

EDN – Ethernet Data Node
The EDN 20 (Ethernet Data Node) is a convenient and scalable solution, providing cost-effective Ethernet-distributed DMX ports for large control projects.
The EDN is an easily configurable networking node that is specifically designed
to add physical DMX ports to Pharos Controller and integrates natively with the full Pharos range.
Extremely compact, it packs up to 20 DMX512 output ports into a 1U 19” form factor. For higher port count installations, nodes can be daisy-chained to provide as many physical DMX ports as you need.
EDNs are discoverable through Pharos Designer software and associated to a Controller to be seamlessly configured as part of your patch. Ports can be flexibly assigned to any controller in your project providing an elegant data distribution solution over an Ethernet network with minimal setup required.
LPCX – Lighting Playback Controller X
The LPC X (Lighting Playback Controller X) offers an extreme level of power and integration, making it an ideal solution for landmark lighting installations with significant channel counts. It integrates with the full range of Pharos products and offers an optional real-time video input.
within an IP65 box
– 2 channels output
DMXRDM System block diagram
Wiring Diagram for controller
TPC + EXT
TPC + LPC
TPC + EXT , TPC + LPC
For The use of Over 30 luminaires and Distances Over 400m.
